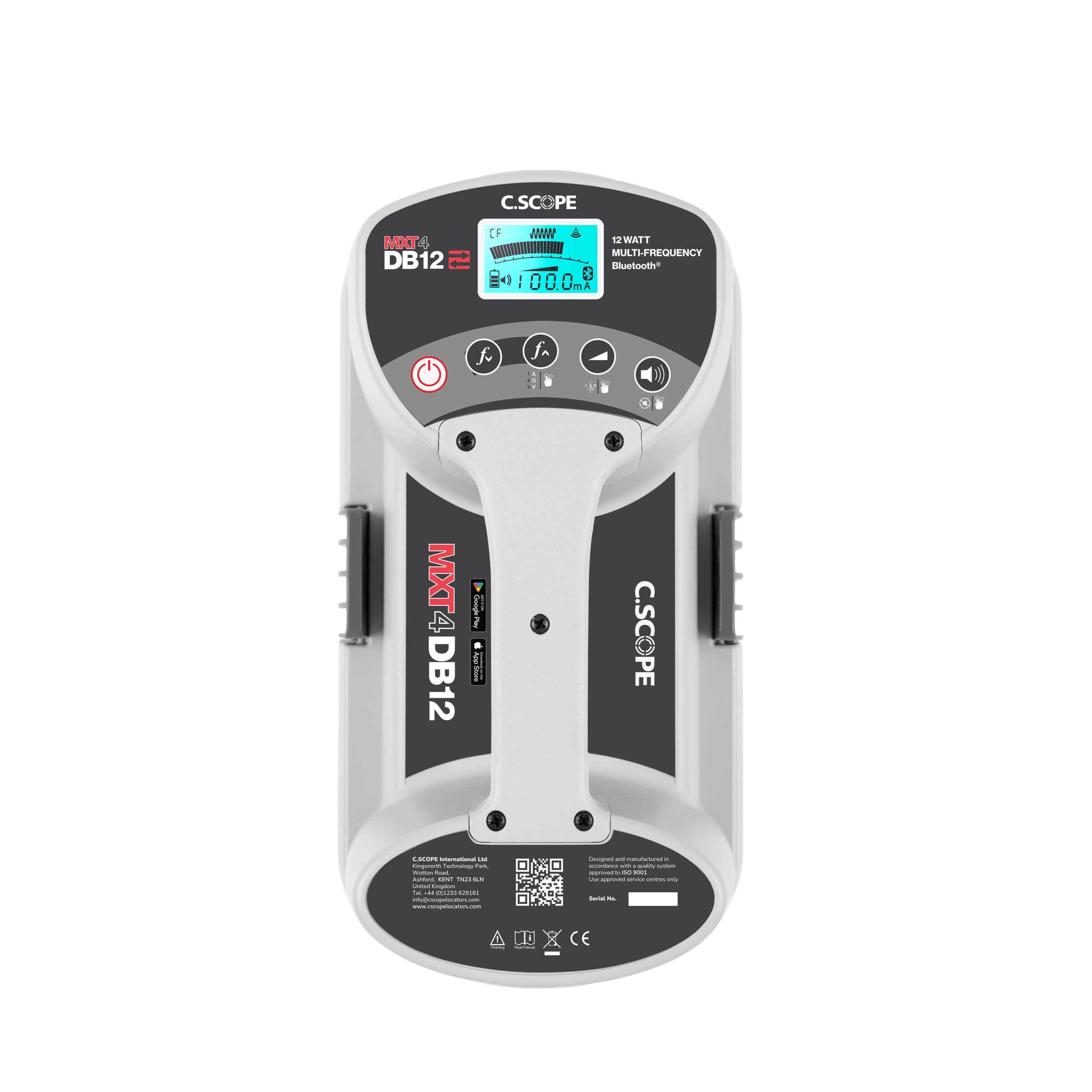

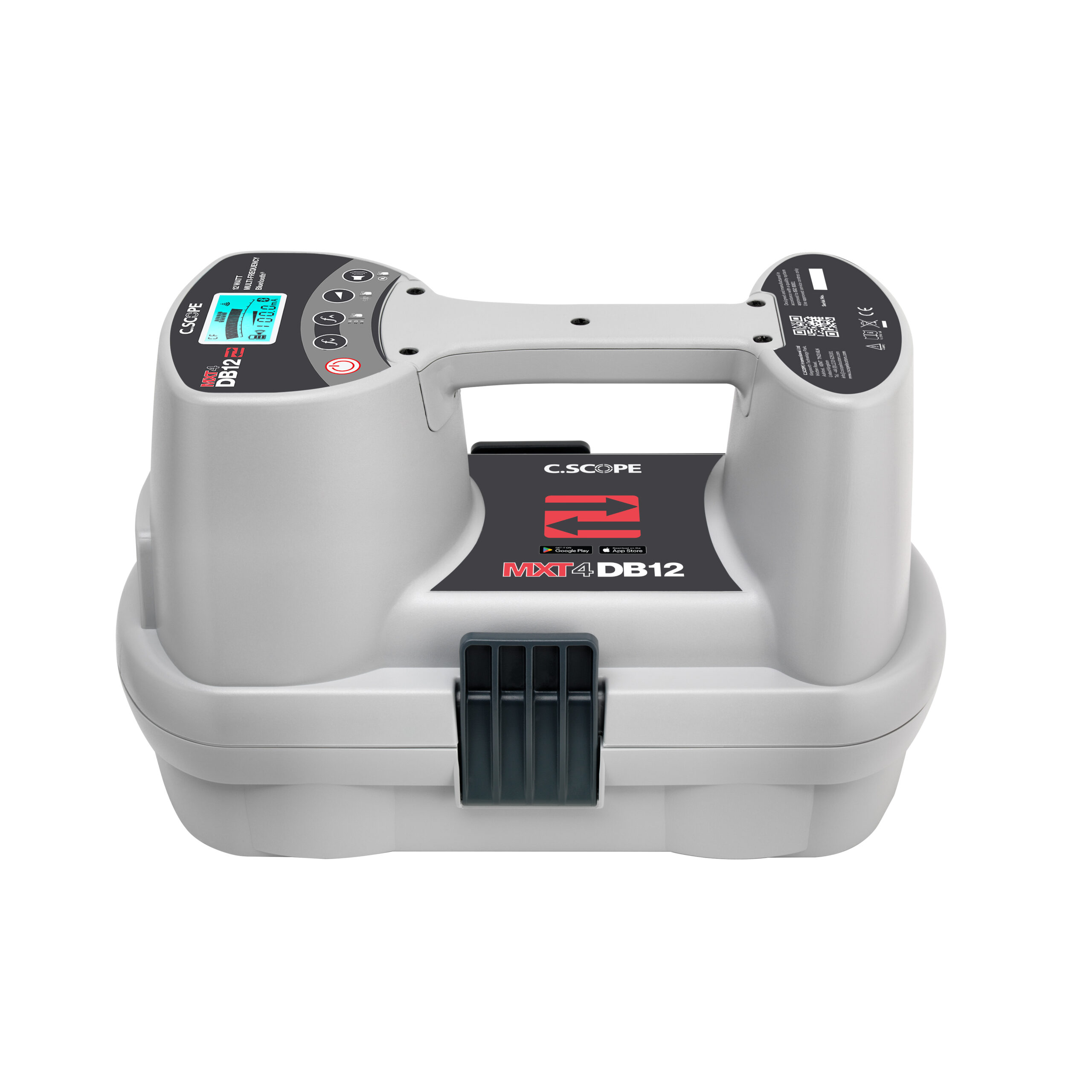

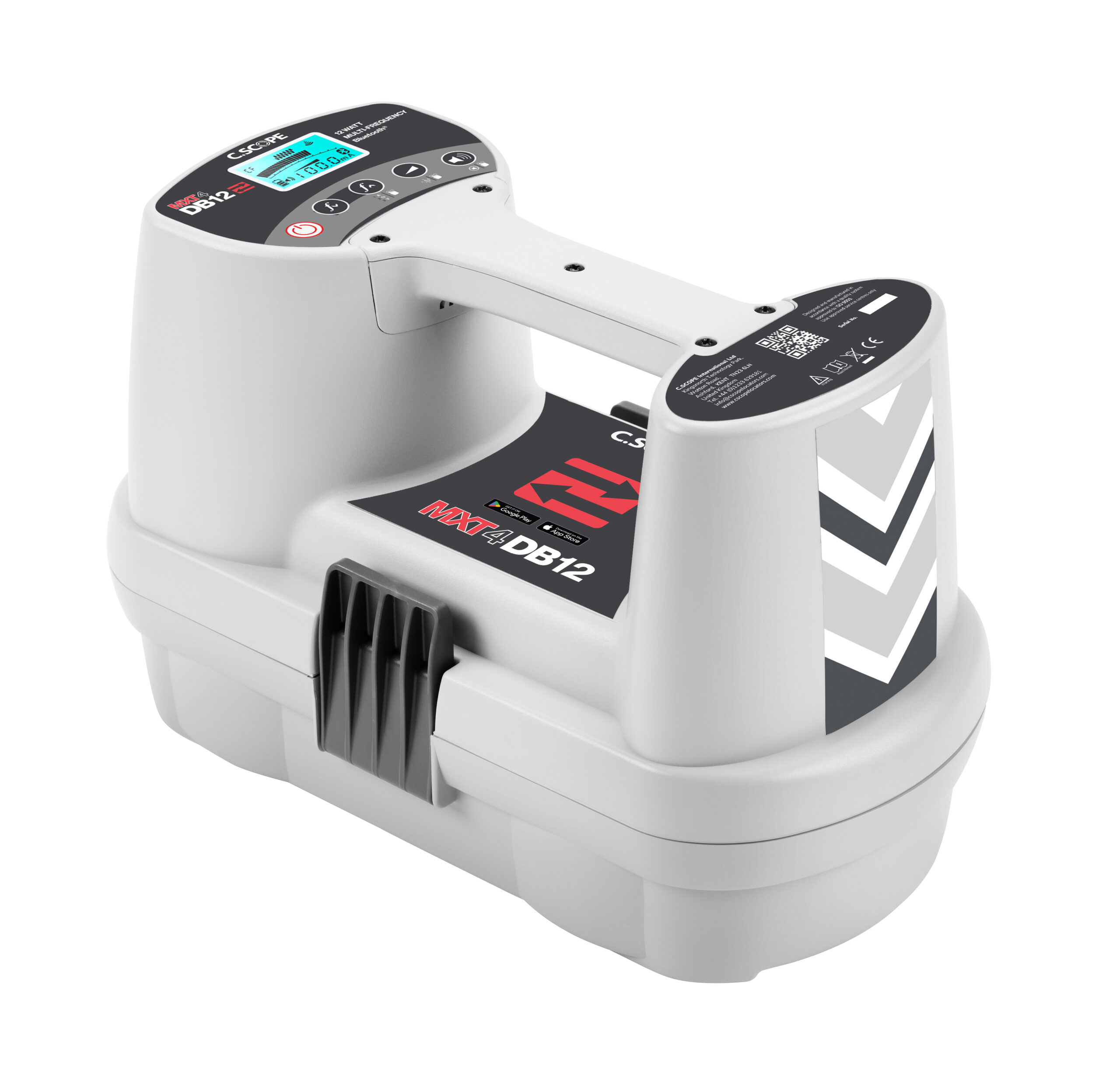

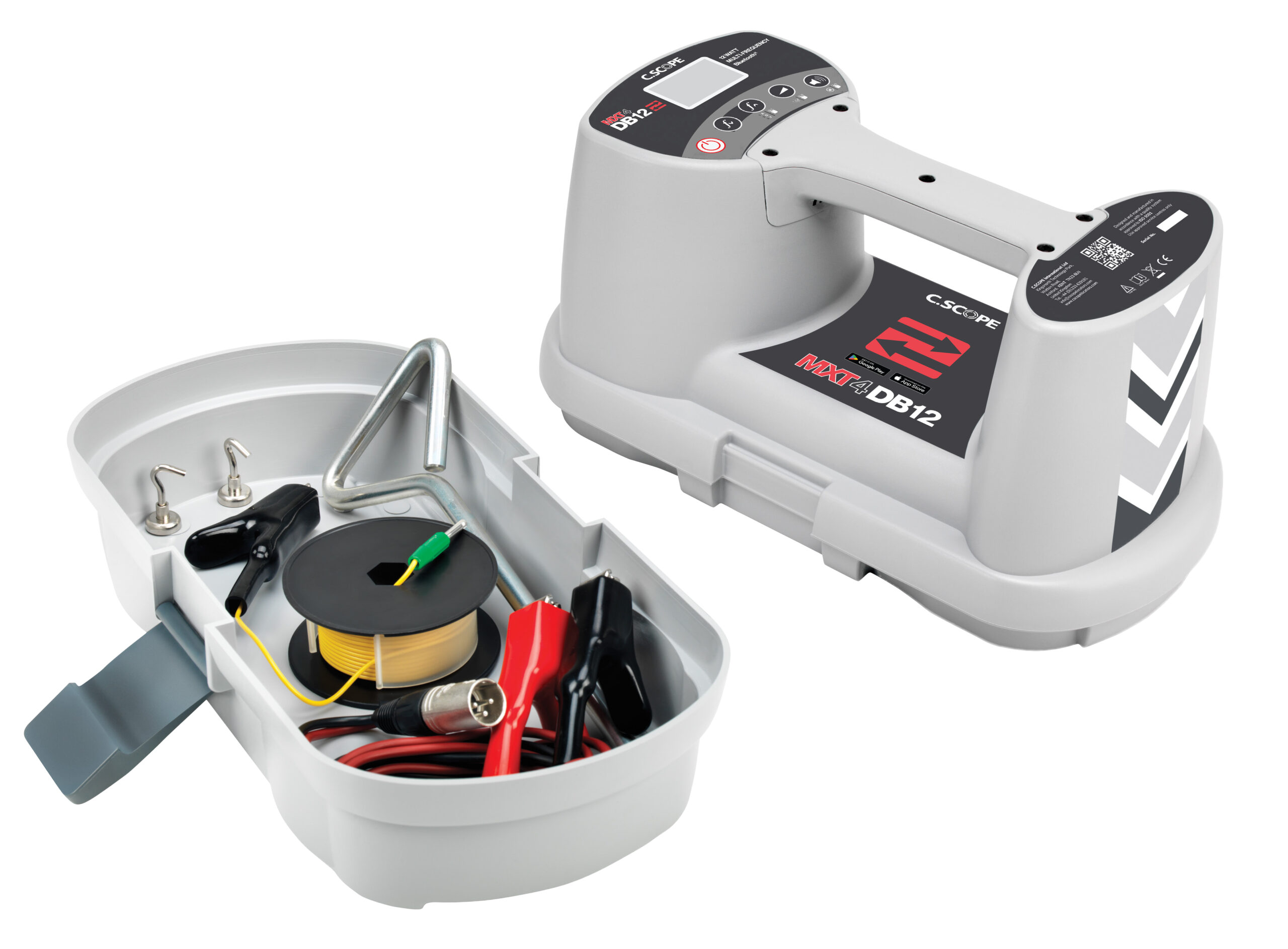

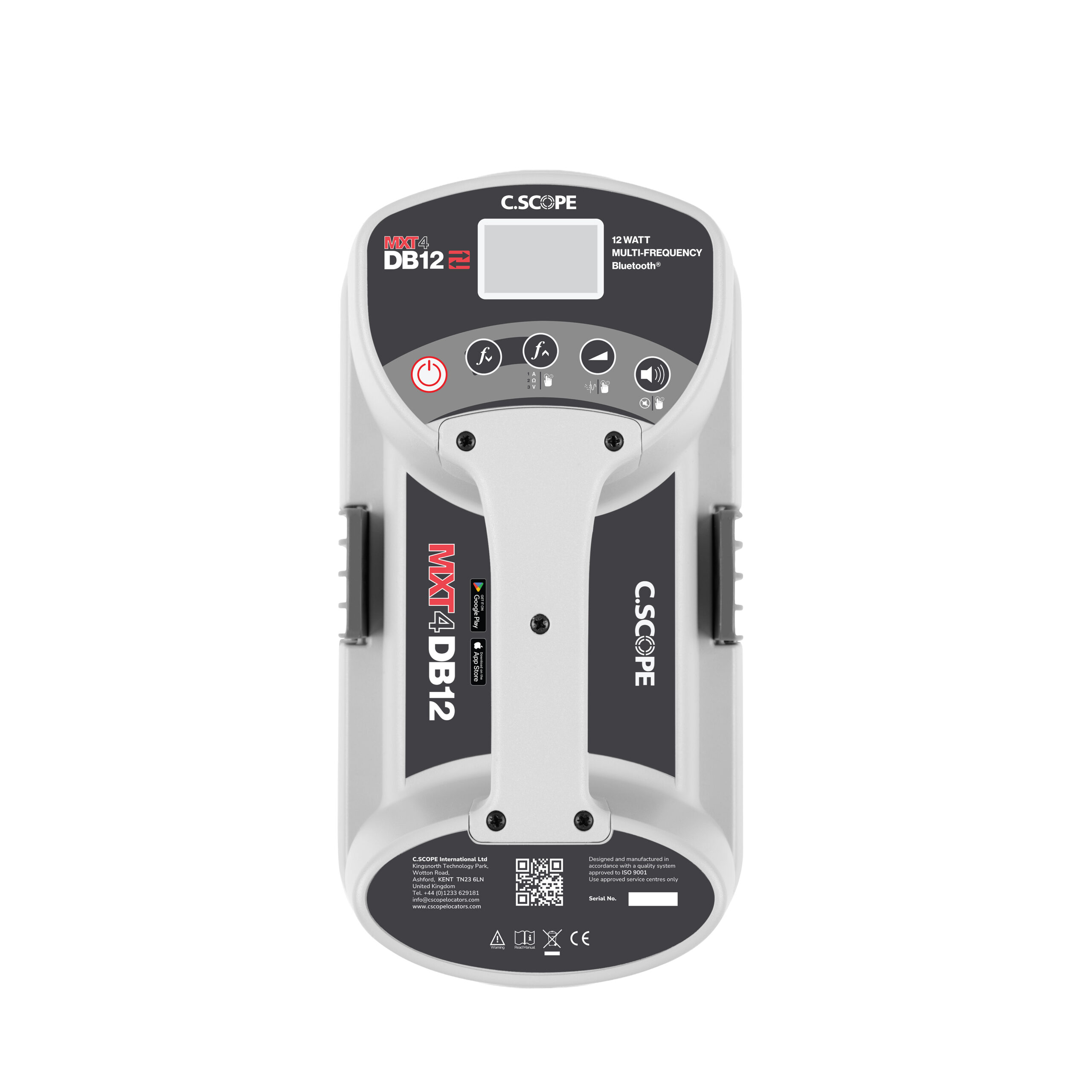

MXT4-DB12 Transmitter
The C.Scope MXT4-DB12 is a digital, high-power 12-Watt multi-frequency Transmitter featuring a built-in Li-ion battery, Bluetooth® remote control, and Bluetooth® data download capabilities.
Designed for seamless operation alongside the MXL4 Precision Pipe & Cable Locator, this advanced transmitter delivers significantly extended tracing distances, wireless data management, and remote control over output settings.
The C.Scope MXT4-DB12 is a digital, high-power 12-Watt multi-frequency Transmitter featuring a built-in Li-ion battery, Bluetooth® remote control, and Bluetooth® data download capabilities.
Designed for seamless operation alongside the MXL4 Precision Pipe & Cable Locator, this advanced transmitter delivers significantly extended tracing distances, wireless data management, and remote control over output settings.
The C.Scope MXT4-DB12 is a high-performance 12-Watt multi-frequency transmitter featuring an integrated Li-ion battery and Bluetooth® capabilities for remote control and data downloads. It provides multi-frequency operation (512/640Hz to 131kHz), three signal application techniques (Direct Connection, Wraparound, and Induction), data logging, and the Automatic Daily Self Test (ADST). For comprehensive details and full specifications, please consult the product manual.
- 12-Watt Power Output (in Connected Mode)
- Built-in Lithium-ion (Li-ion) battery pack
- Bluetooth® Connectivity for wireless remote control and data download
- Six Signal Outputs: Simultaneous 33+131kHz, 512Hz, 640Hz, 8kHz, 33kHz, 131kHz
- Automatic Daily Self Test (ADST) & No periodic calibration required
- IP65 dust and water protection
|
Attribute |
Specification |
|
Product Name |
MXT4-DB12 Transmitter |
|
Part No. |
MXT4-DB12 |
|
Battery Type |
Built-in Li-ion Rechargeable Battery Pack |
|
IP Rating |
65 |
2. SGV4-DB Signal Generator
Description
The C.Scope SGV4-DB is a digital Signal Generator equipped with Bluetooth® remote control, Bluetooth® data download, and an integrated Li-ion battery, designed to enhance the performance of 4-Series Cable Avoidance Tools.
Overview
The SGV4-DB incorporates built-in Li-ion power and Bluetooth® connectivity for wireless data management and remote frequency/power adjustments from the locator. It supports simultaneous dual-frequency output (33kHz and 131kHz), standard signal application methods, data logging, and ADST verification. Additional operational guidance is available in the provided documentation.
Specification
- Built-in Lithium-ion (Li-ion) battery pack
- Bluetooth® Connectivity for remote control and data download
- Simultaneous Dual-Frequency (33kHz and 131kHz) signal output
- Automatic Daily Self Test (ADST)
- IP65 dust and water protection
|
Attribute |
Specification |
|
Product Name |
SGV4-DB Signal Generator |
|
Part No. |
SGV4-DB |
|
Battery Type |
Built-in Li-ion Rechargeable Battery Pack |
|
IP Rating |
65 |
